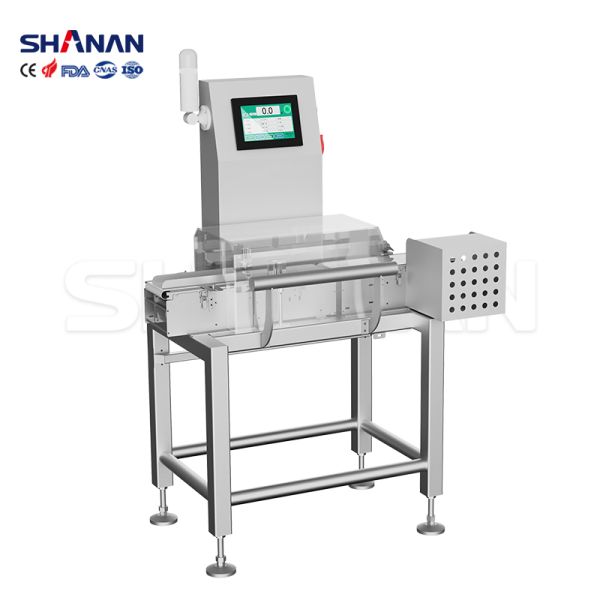

FDA Food Grade Automatic check weigher with pusher rejector for food industry
Weighing and sorting machine is a kind of application to various automation lines.And automatic weight detection on the logistics conveyor system, upper and lower limits or according to the weight checkHigh-tech automated sorting equipment for testing products. Universal weighingMore suitable for online automatic weighing of boxed, parcel box, single product sample packaging productsDetection, underweight detection, missing installation detection, attachment missing detection, etc.
Product features and advantages:
Designed to increase productivity and increase productivity; high-speed sampling control enables equipment speed
Faster and higher precision; 10-inch large operation screen, easy to use human-machine interface 3
Independent operation in minutes; reinforced stainless steel structure, IP65-68 waterproof type (optional)
; can store a variety of recipes, easy to replace product specifications; modular structure makes the machine
Simple, easy to maintain, easy to clean; manual or automatic zero and dynamic zero tracking;
Generate EXCEL format and a variety of real-time data reports, U disk storage for more than 1 year of data
, support the production situation at any time; communicate with PC and other smart devices;
Centralized control of multiple checkweighers by one computer and man-machine interface; using frequency control
Motor, speed can be adjusted as needed.
Product application:
Weighing and sorting is suitable for testing whether the weight of a single product is acceptable or the product is packaged.
Whether there are any omissions in the process, widely used in pharmaceutical, food, beverage, electronics, health care
Products, daily chemicals, light industry, agricultural and sideline products and many other industries. Such as boxed medicines, food industry
| Parts Name | Specification /Brand | Unit | Use amount |
| Control system | Vfinder control system ,8 inch industrial touch screen | pcs | 1 |
| Weight sensor | Germany HBM | Pcs | 1 |
| Driving system | Delta | Pcs | 1 |
| Inverter | Delta | Pcs | 1 |
| photoelectric switch | Taiwan Riko | Pcs | 1 |
| Motor Switch | CHNT | Pcs | 1 |
| Conveyor belt | White Shabaker | Pcs | 1 |
| Main conveyor belt roller | NSK Bearing , | Pcs | 1 |
Accessory conveyer belt
| NSK Bearing | Pcs | 1 |
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color D Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
Wind Shield (top)
| | VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(Two belt) | VC-100 |
| Model Name |
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) |
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) |
| Optional | |
| Product model | SACW-210 | Transfer speed | 30~100m/min |
| Power supply | AC220V土10% 50HZ (60HZ) | Maximum speed | 160 pcs/min |
| Rated power | 0.15KW | Weighing conveyorbelt size | 400mm(L)“210mm (W) |
| Single weighing range | 1.5-200g | Elimination method | Blow-out |
| Weighing accuracy range | 土0.02g~土1g | Control System | High speed A/Dsampling controller |
| Minimum scale | 0.01g | Preset product number | 2000pcs |
| Inspection item size | ≤2800mm(L)*200mm (W) |
| size Machine | 2100mm (L)*560mm(W)*1222mm (H) |
| Operation direction | Facing the machine, left to right |
| External air supply | 0.6-1Mpa |
| Air pressure interface | Φ8mm |
| Workingenvironment | Temperature:0C~40C,Humidity:30%~95% |
| Body material | Stainless steel 304 polished |
| Operationscreen display | Chinese, English, Turkish, Spanish, etc. |
| Other standardequipment | Windshield (colorless and transparent), calibration weight |
| Height of beltsurface from ground | 650mm~~750mm(can be customized) |
| Protection level | Protection level conforms to IP-65 international standard |
| Remarks | According to the different dimensions of the tested product andthe working environment in which the equipment is running, the
accuracyof the speedometer is slightly different |
